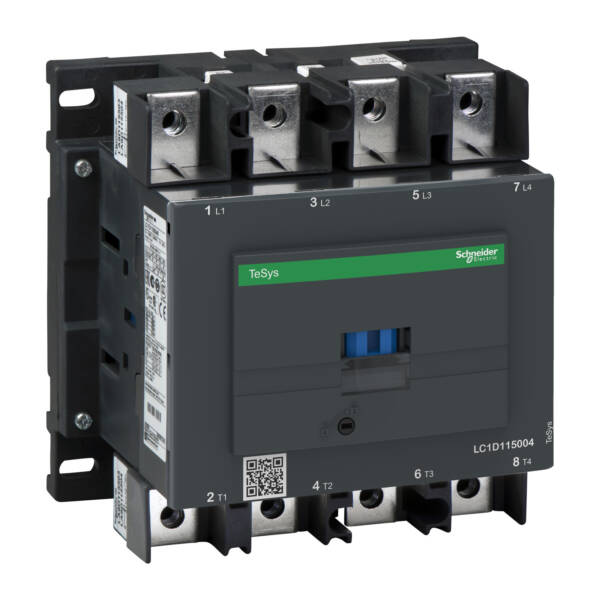

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 110 V AC 50/60 Hz coil - Schneider Electric - LC1D1150046F7

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 110 V AC 50/60 Hz coil - Schneider Electric - LC1D1150046F7

LC1D1150046F7

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 110 V AC 50/60 Hz coil - Schneider Electric - LC1D1150046F7

Control

~~List Price £701.61 +VAT~~

Our Price £526.21 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"TeSys Deca contactor, 4 poles(4NO) for category AC-1 applications up to 200A @440V." "It provides with 110V AC 50/60 Hz coil, with no auxiliary contacts, power and control connections by lugs and bars." It procures high reliability and durability with 8 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. "Designed for demanding applications with maximum operating rates up to 2400 cycles per hour under maximum 60°C." The dimension is 158mm x 155mm x 115mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,DNV,GL,CSA,GOST,BV,UL,LROS,RINA,UKCA).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D1150046F7
Weight (kg): 2.37 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Other
Width: 155
Rated control supply voltage AC 50 Hz: 110 Volt
Rated control supply voltage AC 60 Hz: 110 Volt
Number of normally open contacts as main contact: 4
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 115
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 200
Voltage type for actuating: AC
Height: 158

Datasheet for LC1D1150046F7 - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 110 V AC 50/60 Hz coil - Schneider Electric - LC1D1150046F7

Download
