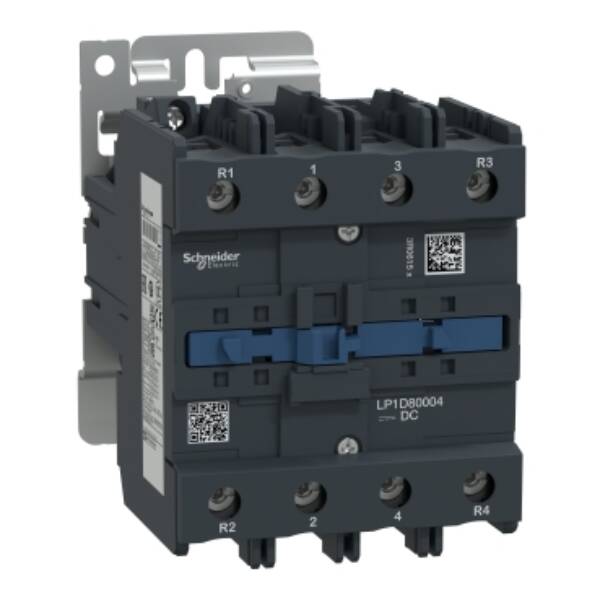

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 48 V DC coil - Schneider Electric - LP1D80004ED
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 48 V DC coil - Schneider Electric - LP1D80004ED

LP1D80004ED

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 48 V DC coil - Schneider Electric - LP1D80004ED

Control

List Price £591.58 +VAT

Our Price £443.69 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"TeSys Deca contactor, 4P(4NO) for category AC-1 applications up to 125A @440V." "It provides with 48V DC standard coil, with no auxiliary contacts, power and control connections by screw clamp terminals." "It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability." "It provides IP20 protection on front face conforming to IEC 60529." "It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude." "Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C." "The dimension is 127mm x 96mm x 181mm (H x W x D), mounting on rail or plate." "Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL)
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LP1D80004ED
Weight (kg)
2.62 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Width
96
Number of normally open contacts as main contact
4
Modular version
FALSE
Depth
181
Rated operation current Ie at AC-1, 400 V
125
Voltage type for actuating
DC
Rated control supply voltage DC
48 Volt
Height
127

Datasheet for LP1D80004ED - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 48 V DC coil - Schneider Electric - LP1D80004ED

Download
