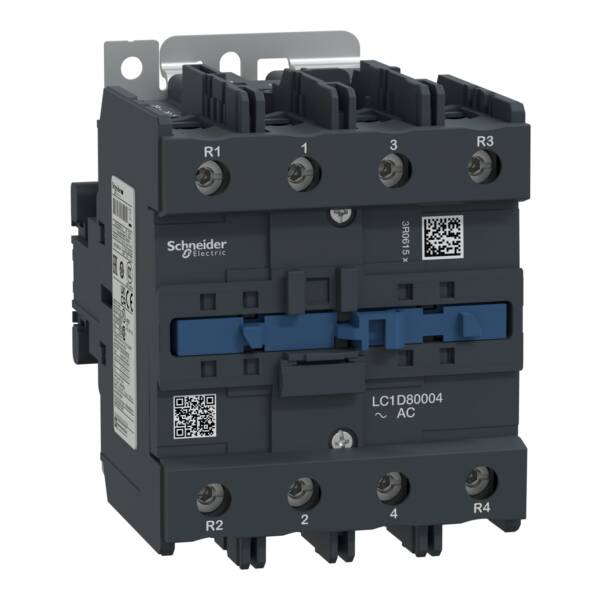

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 400 V AC 50/60 Hz coil - Schneider Electric - LC1D80004V7

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 400 V AC 50/60 Hz coil - Schneider Electric - LC1D80004V7

LC1D80004V7

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 400 V AC 50/60 Hz coil - Schneider Electric - LC1D80004V7

Control

~~List Price £495.74 +VAT~~

Our Price £371.81 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"TeSys Deca contactor, 4P(4NO) for category AC-1 applications up to 125A @440V." It provides with 400V 50/60 Hz coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability. "It provides IP20 protection on front face conforming to IEC 60529." It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 125mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D80004V7
Weight (kg): 1.69 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 96
Rated control supply voltage AC 50 Hz: 400 Volt
Rated control supply voltage AC 60 Hz: 400 Volt
Number of normally open contacts as main contact: 4
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 125
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 125
Voltage type for actuating: AC
Height: 127

Datasheet for LC1D80004V7 - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 400 V AC 50/60 Hz coil - Schneider Electric - LC1D80004V7

Download
