LC1D65008P7

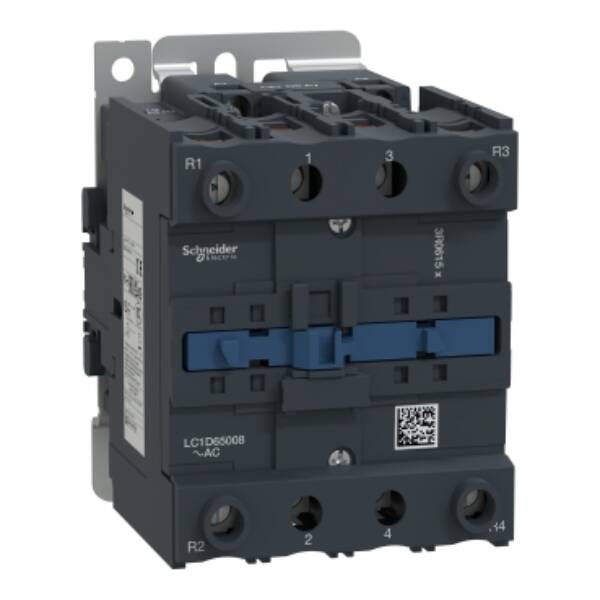

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 80 A 230 V AC 50/60 Hz coil - Schneider Electric - LC1D65008P7

Automation

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 80A/690V AC-1. It provides a 230V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £405.83 +VAT~~

Our Price £304.37 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days
