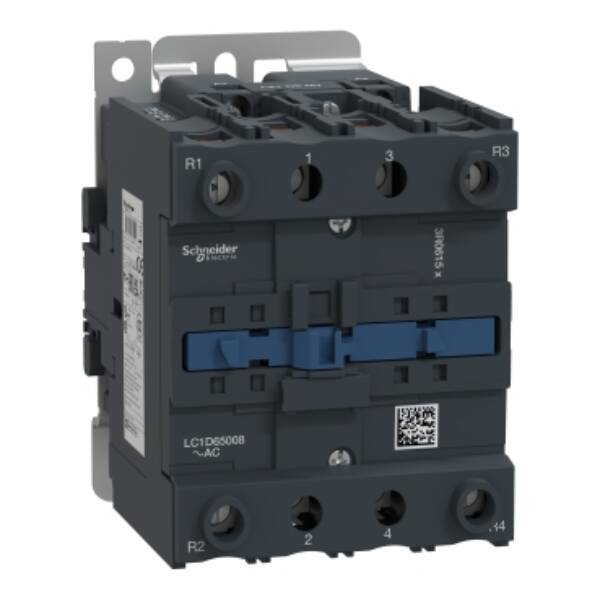

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 80 A 220 V AC 50/60 Hz coil - Schneider Electric - LC1D65008M7

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 80 A 220 V AC 50/60 Hz coil - Schneider Electric - LC1D65008M7

LC1D65008M7

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 80 A 220 V AC 50/60 Hz coil - Schneider Electric - LC1D65008M7

Control

~~List Price £405.83 +VAT~~

Our Price £304.37 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

"TeSys Deca contactor, 4 poles (2NO/2NC),for load control applications in category AC-1." and for non-inductive load control applications up to 80A@60℃. It provides a 220V 50/60Hz standard AC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D65008M7
Weight (kg): 1.48 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 85
Rated control supply voltage AC 50 Hz: 220 Volt
Rated control supply voltage AC 60 Hz: 220 Volt
Number of normally closed contacts as main contact: 2
Number of normally open contacts as main contact: 2
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 125
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 80
Voltage type for actuating: AC
Height: 127

Datasheet for LC1D65008M7 - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 80 A 220 V AC 50/60 Hz coil - Schneider Electric - LC1D65008M7

Download
