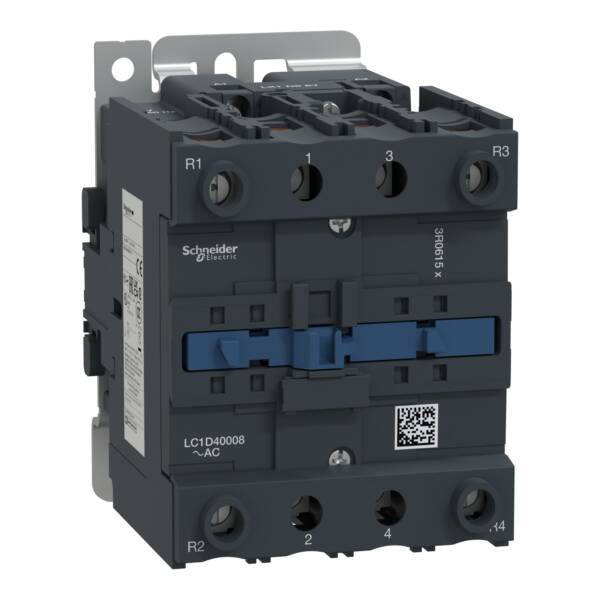

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A 230 V AC 50/60 Hz coil - Schneider Electric - LC1D40008P7

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A 230 V AC 50/60 Hz coil - Schneider Electric - LC1D40008P7

LC1D40008P7

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A 230 V AC 50/60 Hz coil - Schneider Electric - LC1D40008P7

Control

~~List Price £242.55 +VAT~~

Our Price £181.91 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 230V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D40008P7
Weight (kg): 1.48 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 85
Rated control supply voltage AC 50 Hz: 230 Volt
Rated control supply voltage AC 60 Hz: 230 Volt
Number of normally closed contacts as main contact: 2
Number of normally open contacts as main contact: 2
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 125
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 60
Height: 127
Voltage type for actuating: AC

Datasheet for LC1D40008P7 - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A 230 V AC 50/60 Hz coil - Schneider Electric - LC1D40008P7

Download
