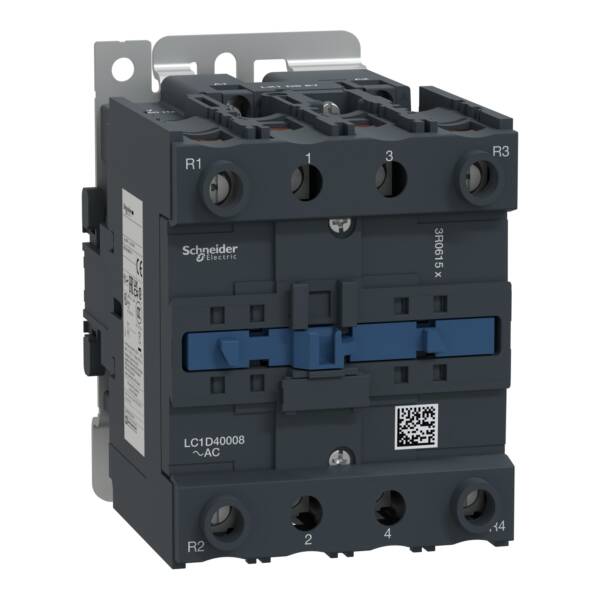

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1D40008E7
TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1D40008E7

LC1D40008E7

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1D40008E7

Control

List Price £254.38 +VAT

Our Price £190.79 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 48V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D40008E7
Weight (kg)
1.47 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
48 V
Rated control supply voltage Us at AC 60HZ
48 V
Number of normally closed contacts as main contact
2
Number of main contacts as normally open contact
2
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
60
Voltage type for actuating
AC

Datasheet for LC1D40008E7 - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1D40008E7

Download
