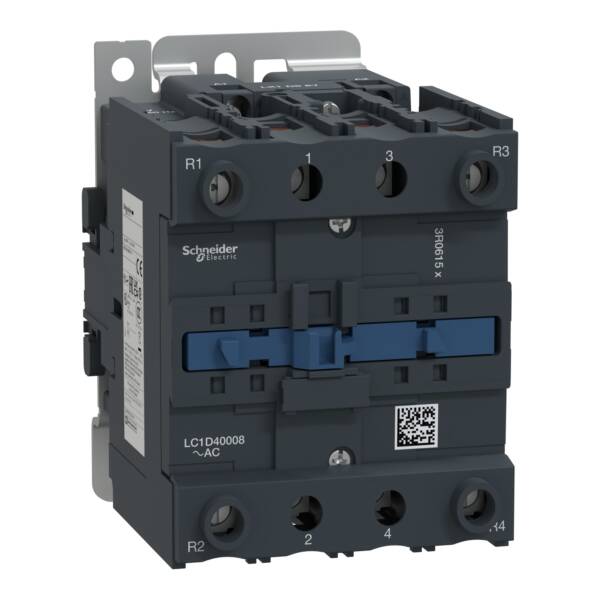

TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 120 VAC 60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 4.92 inches deep. It weighs 3.17 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Brand

Schneider Electric

Range

TeSys Deca contactors

Part No

LC1D40008G6

Weight (kg)

1.48 kg

Type

TeSys Deca contactors

Type of electrical connection of main circuit

Screw connection

Width

85

Rated control supply voltage AC 60 Hz

120 Volt

Number of normally closed contacts as main contact

2

Number of normally open contacts as main contact

2

Modular version

FALSE

Operating voltage AC 50 Hz

440 Volt

Depth

125

Operating voltage AC 60 Hz

440 Volt

Rated operation current Ie at AC-1, 400 V

60

Voltage type for actuating

AC

Height

127
