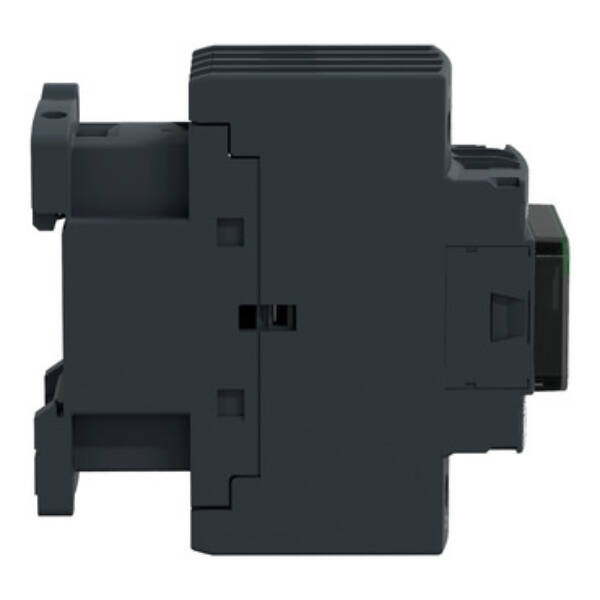

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 40 A - 24 V DC coil - Schneider Electric - LC1D258BL

LC1D258BL

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 40 A - 24 V DC coil - Schneider Electric - LC1D258BL

Control

~~List Price £157.37 +VAT~~

Our Price £118.03 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 40A/690V AC-1. It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D258BL
Weight (kg): 0.64 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 45
Number of normally closed contacts as main contact: 2
Number of normally open contacts as main contact: 2
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Depth: 107
Rated operation current Ie at AC-1, 400 V: 40
Voltage type for actuating: DC
Height: 91
Rated control supply voltage DC: 24 Volt

Datasheet for LC1D258BL - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 40 A - 24 V DC coil - Schneider Electric - LC1D258BL

Download
