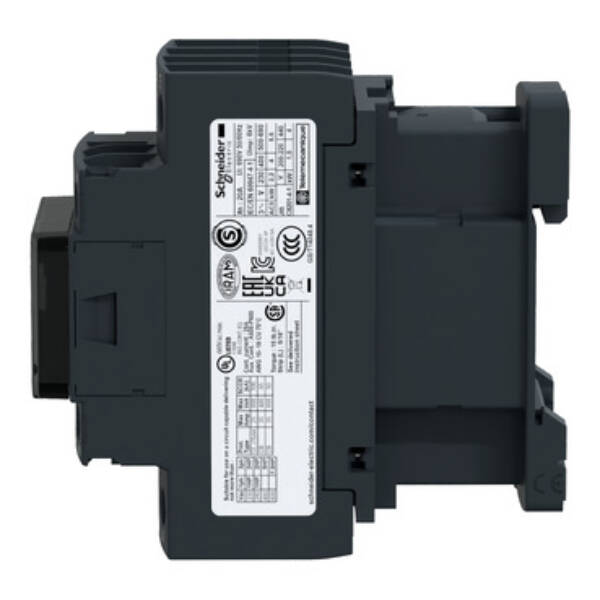

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 32A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 120V AC 50/60Hz coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 32A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.13 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Brand

Schneider Electric

Range

TeSys Deca contactors

Part No

LC1D188G7

Weight (kg)

0.48 kg

Type

TeSys Deca contactors

Type of electrical connection of main circuit

Screw connection

Width

45

Rated control supply voltage AC 50 Hz

120 Volt

Rated control supply voltage AC 60 Hz

120 Volt

Number of normally closed contacts as main contact

2

Number of normally open contacts as main contact

2

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

1

Modular version

FALSE

Operating voltage AC 50 Hz

440 Volt

Depth

99

Operating voltage AC 60 Hz

440 Volt

Rated operation current Ie at AC-1, 400 V

32

Height

91

Voltage type for actuating

AC
