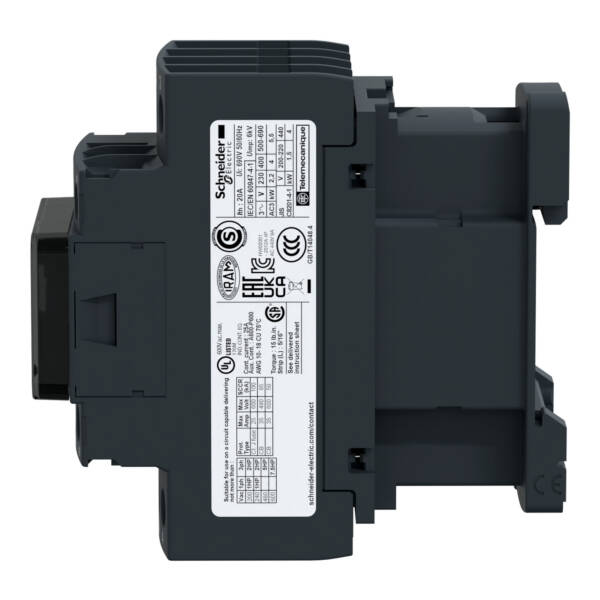

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 48 V DC coil - Schneider Electric - LC1D128EL

LC1D128EL

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 48 V DC coil - Schneider Electric - LC1D128EL

Control

~~List Price £95.84 +VAT~~

Our Price £71.88 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. It provides a 48V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D128EL
Weight (kg): 0.55 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 45
Number of normally closed contacts as main contact: 2
Number of normally open contacts as main contact: 2
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 99
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 25
Rated control supply voltage DC: 48 Volt
Height: 85
Voltage type for actuating: DC

Datasheet for LC1D128EL - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 48 V DC coil - Schneider Electric - LC1D128EL

Download
