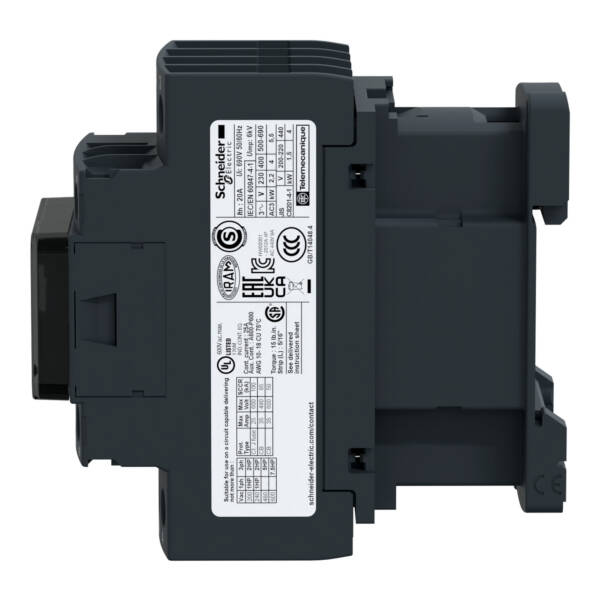

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 20 A - 24 V DC coil - Schneider Electric - LC1D098BD

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 20 A - 24 V DC coil - Schneider Electric - LC1D098BD

LC1D098BD

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 20 A - 24 V DC coil - Schneider Electric - LC1D098BD

Control

~~List Price £91.11 +VAT~~

Our Price £68.33 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 20A/690V AC-1. It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D098BD
Weight (kg): 0.55 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Number of normally closed contacts as main contact: 2
Number of main contacts as normally open contact: 2
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Rated operation current Ie at AC-1, 400 V: 25
Voltage type for actuating: DC
Rated control supply voltage Us at DC: 24 V

Datasheet for LC1D098BD - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 20 A - 24 V DC coil - Schneider Electric - LC1D098BD

Download
