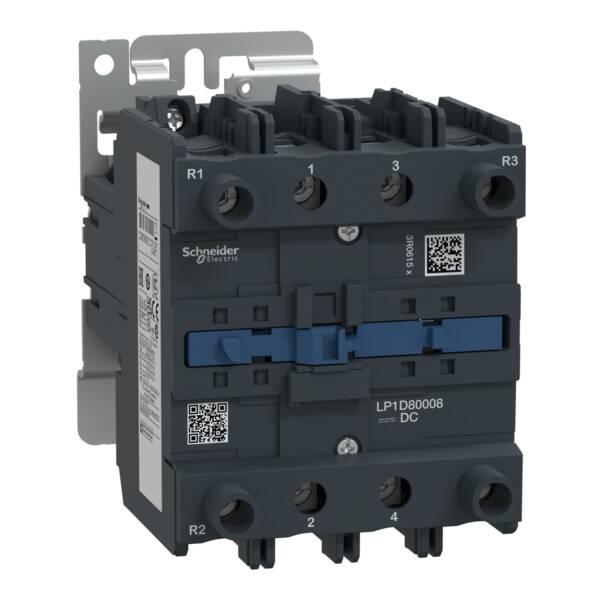

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil - Schneider Electric - LP1D80008BW

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil - Schneider Electric - LP1D80008BW

LP1D80008BW

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil - Schneider Electric - LP1D80008BW

Control

~~List Price £698.06 +VAT~~

Our Price £523.55 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"TeSys Deca contactor, 4P(2NO/2NC) for category AC-1 applications up to 125A @440V." "It provides with 24V DC wide range coil, with no auxiliary contacts, power and control connections by screw clamp terminals." "It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability." "It provides IP20 protection on front face conforming to IEC 60529." "It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude." "Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C." "The dimension is 127mm x 96mm x 196mm (H x W x D), mounting on rail or plate." "Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL)

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LP1D80008BW
Weight (kg): 2.86 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 96
Number of normally closed contacts as main contact: 2
Number of normally open contacts as main contact: 2
Modular version: FALSE
Depth: 196
Rated operation current Ie at AC-1, 400 V: 125
Height: 127
Rated control supply voltage DC: 24 Volt
Voltage type for actuating: DC

Datasheet for LP1D80008BW - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil - Schneider Electric - LP1D80008BW

Download
