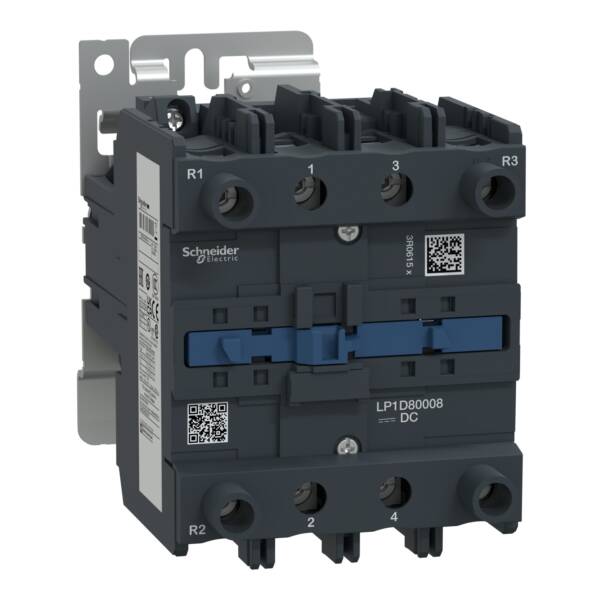

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil - Schneider Electric - LP1D80008BD

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil - Schneider Electric - LP1D80008BD

LP1D80008BD

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil - Schneider Electric - LP1D80008BD

Control

~~List Price £615.25 +VAT~~

Our Price £461.44 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys Deca contactor, 4-pole (2NO+2NC), for non-inductive load applications up to 125A/1000V AC-1. It provides a 24V DC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, front mounting auxiliary contact blocks can be added (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LP1D80008BD
Weight (kg): 2.78 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 96
Number of normally closed contacts as main contact: 2
Number of normally open contacts as main contact: 2
Modular version: FALSE
Depth: 196
Rated operation current Ie at AC-1, 400 V: 125
Height: 127
Rated control supply voltage DC: 24 Volt
Voltage type for actuating: DC

Datasheet for LP1D80008BD - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 24 V DC coil - Schneider Electric - LP1D80008BD

Download
