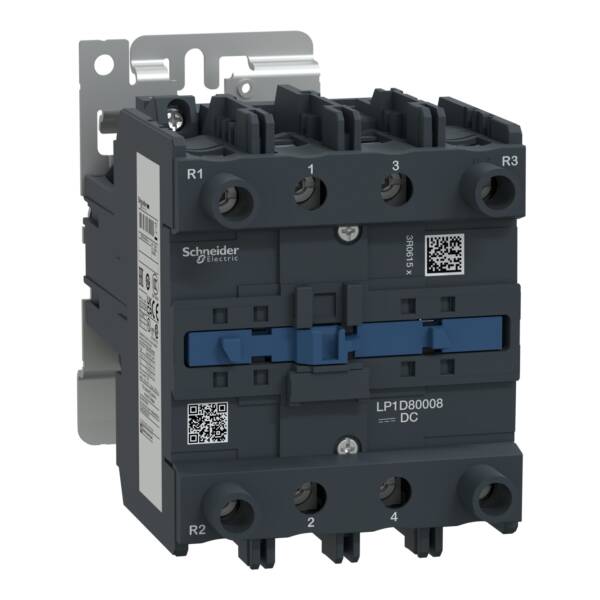

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 220 V DC coil - Schneider Electric - LP1D80008MD
TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 220 V DC coil - Schneider Electric - LP1D80008MD

LP1D80008MD

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 220 V DC coil - Schneider Electric - LP1D80008MD

Control

List Price £657.83 +VAT

Our Price £493.37 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"TeSys Deca contactor, 4P(2NO/2NC) for category AC-1 applications up to 125A @440V." "It provides with 220V DC sdandard coil, with no auxiliary contacts, power and control connections by screw clamp terminals." "It procures with 10 Mcycles mechanical durability and 0.8 Mcycles electrical durability." "It provides IP20 protection on front face conforming to IEC 60529." "It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude." "Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C." "The dimension is 127mm x 96mm x 196mm (H x W x D), mounting on rail or plate." "Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL)
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LP1D80008MD
Weight (kg)
2.85 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
2
Number of main contacts as normally open contact
2
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
125
Rated control supply voltage Us at DC
220 V
Voltage type for actuating
DC

Datasheet for LP1D80008MD - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 125 A - 220 V DC coil - Schneider Electric - LP1D80008MD
