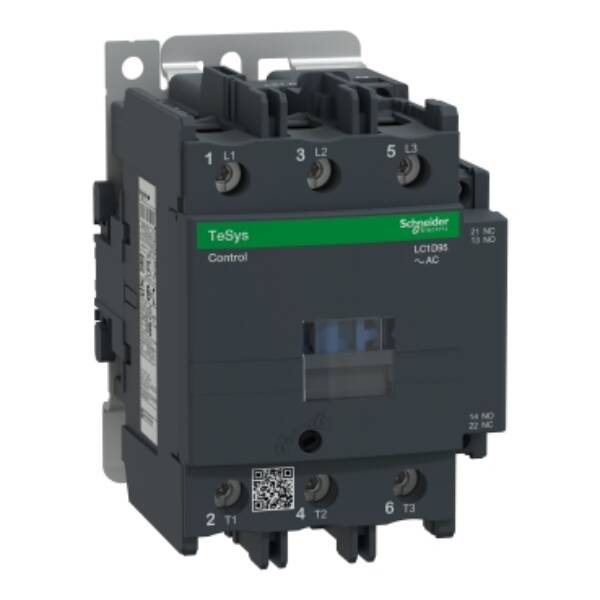

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 115 V AC 50/60 Hz coil - Schneider Electric - LC1D95FE7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 115 V AC 50/60 Hz coil - Schneider Electric - LC1D95FE7

LC1D95FE7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 115 V AC 50/60 Hz coil - Schneider Electric - LC1D95FE7

Control

List Price £411.75 +VAT

Our Price £308.81 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/1000V AC-3/AC-3e (45kW@400V). It provides a 115V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connection by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D95FE7
Weight (kg)
1.57 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
115 V
Rated control supply voltage Us at AC 60HZ
115 V
Rated operation power at AC-3, 400 V
45
Number of main contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
125
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
95
Rated operation current Ie at AC-4, 400 V
32
Rated operation power at AC-4, 400 V
15

Datasheet for LC1D95FE7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 115 V AC 50/60 Hz coil - Schneider Electric - LC1D95FE7
