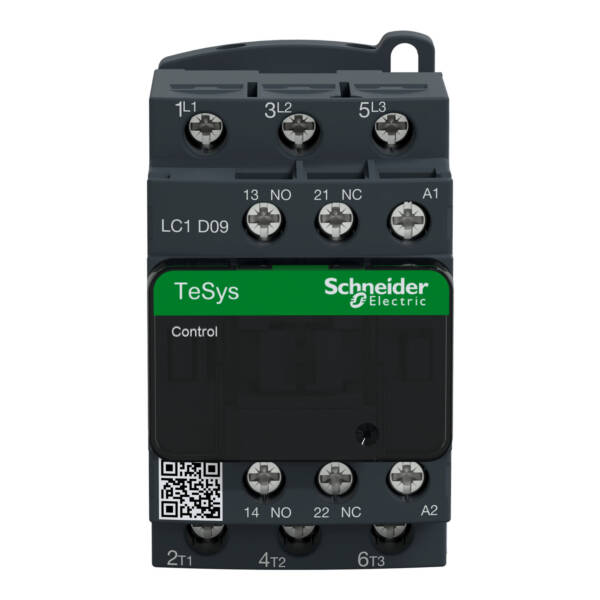

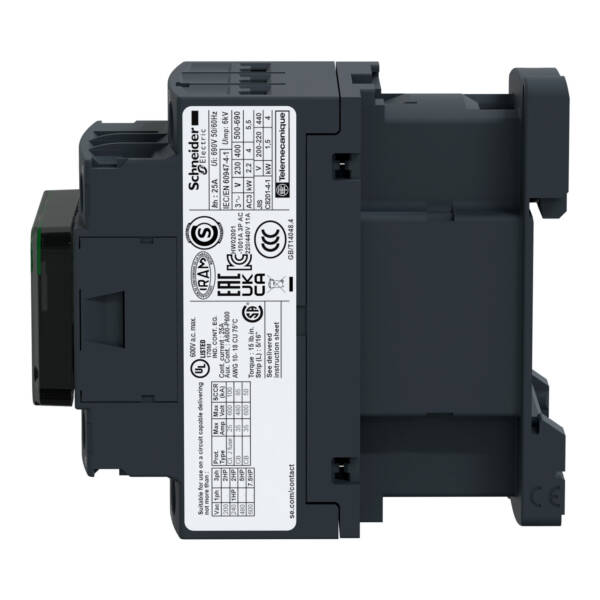

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a 208V AC 50/60Hz coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 20HP at 200-208VAC, 25HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 25A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 208 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.71 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Brand

Schneider Electric

Range

TeSys Deca contactors

Part No

LC1D09LE7

Weight (kg)

0.36 kg

Type

TeSys Deca contactors

Type of electrical connection of main circuit

Screw connection

Rated control supply voltage Us at AC 50HZ

208 V

Rated control supply voltage Us at AC 60HZ

208 V

Rated operation power at AC-3, 400 V

4

Number of main contacts as normally open contact

3

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

1

Modular version

FALSE

Rated operation current Ie at AC-1, 400 V

25

Rated operation current Ie at AC-4, 400 V

6

Rated operation current Ie at AC-3, 400 V

9

Voltage type for actuating

AC

Rated operation power at AC-4, 400 V

2.2
