LC1D80S6
LC1D80S6

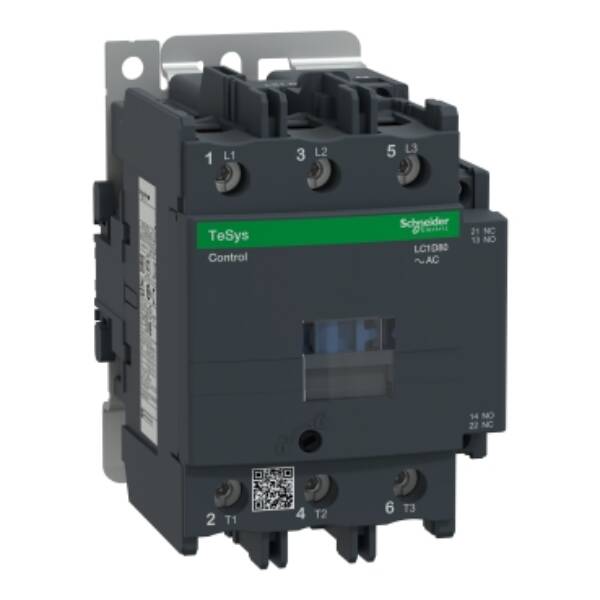

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 500 V AC 60 Hz coil - Schneider Electric - LC1D80S6
Control
List Price £392.81
+VAT
Our Price £294.61
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
"TeSys Deca contactor, 3P(3NO) for category AC-3/AC-3e applications up to 80A @440V." It provides with 500V 60 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals. It procures high reliability and durability with 10 Mcycles mechanical durability and 1.5 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 85mm x 130mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,CSA,UL,GOST,BV,RINA,DNV,LROS,GL).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D80S6
Weight (kg)
1.60 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
craft\elements\db\ElementQuery
500 V
Rated operation power at AC-3, 400 V
37
Number of main contacts as normally open contact
3
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
125
craft\elements\db\ElementQuery
32
craft\elements\db\ElementQuery
AC
Rated operation current Ie at AC-3, 400 V
80
craft\elements\db\ElementQuery
15
Datasheet for LC1D80S6 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 500 V AC 60 Hz coil - Schneider Electric - LC1D80S6
Download
