LC1D80ED
LC1D80ED

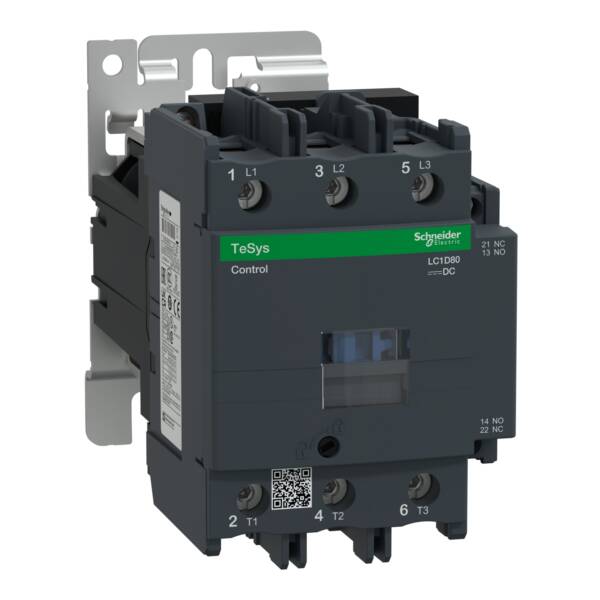

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 48 V DC standard coil - Schneider Electric - LC1D80ED
Control
List Price £455.51
+VAT
Our Price £341.63
+VAT
SAVE 26% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 48V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D80ED
Weight (kg)
2.60 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 400 V
37
Number of main contacts as normally open contact
3
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
125
craft\elements\db\ElementQuery
32
Rated control supply voltage Us at DC
48 V
Rated operation current Ie at AC-3, 400 V
80
craft\elements\db\ElementQuery
DC
craft\elements\db\ElementQuery
15
Datasheet for LC1D80ED - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 48 V DC standard coil - Schneider Electric - LC1D80ED
Download
