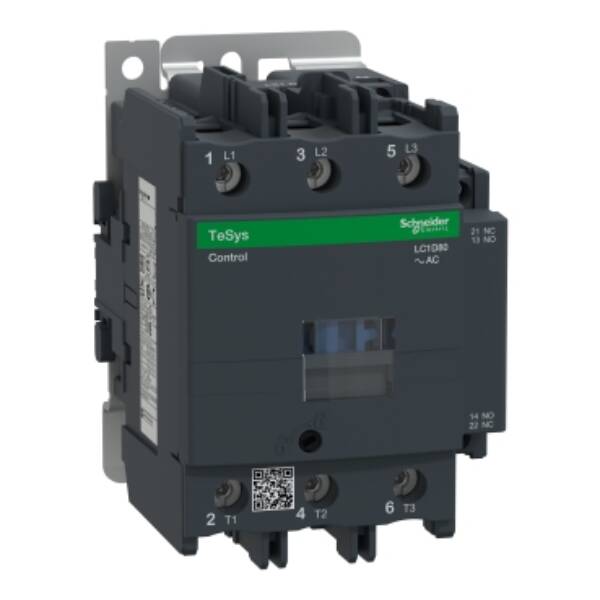

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 240 V AC 50/60 Hz coil - Schneider Electric - LC1D80U7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 240 V AC 50/60 Hz coil - Schneider Electric - LC1D80U7

LC1D80U7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 240 V AC 50/60 Hz coil - Schneider Electric - LC1D80U7

Control

List Price £340.75 +VAT

Our Price £255.56 +VAT

SAVE 26% OFF List Price
Fast Track Delivery Product
Get in touch
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D80U7
Weight (kg)
1.55 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
240 V
craft\elements\db\ElementQuery
240 V
Rated operation power at AC-3, 400 V
37
Number of main contacts as normally open contact
3
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
125
craft\elements\db\ElementQuery
AC
craft\elements\db\ElementQuery
32
Rated operation current Ie at AC-3, 400 V
80
craft\elements\db\ElementQuery
15

Datasheet for LC1D80U7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 240 V AC 50/60 Hz coil - Schneider Electric - LC1D80U7

Download
