LC1D806BD
LC1D806BD

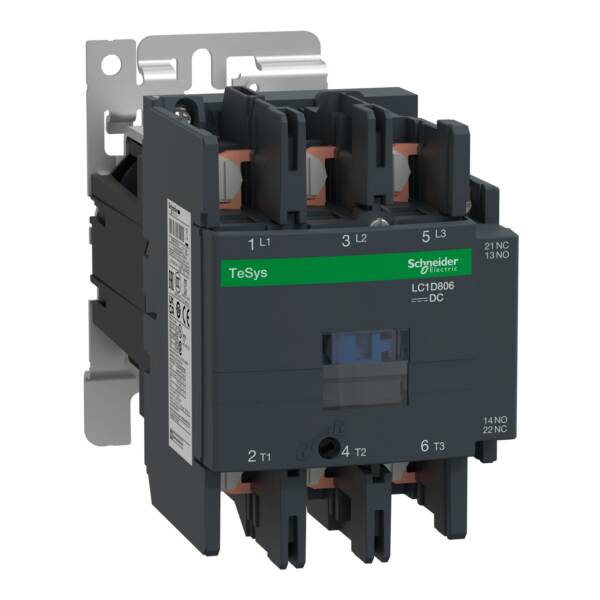

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 24 V DC standard coil - Schneider Electric - LC1D806BD
Control
List Price £464.98
+VAT
Our Price £348.74
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection for bars or lugs, control connection for lugs. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D806BD
Weight (kg)
2.29 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Other
Rated operation power at AC-3, 400 V
37
Number of main contacts as normally open contact
3
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
125
craft\elements\db\ElementQuery
DC
craft\elements\db\ElementQuery
32
Rated control supply voltage Us at DC
24 V
Rated operation current Ie at AC-3, 400 V
80
craft\elements\db\ElementQuery
15
Datasheet for LC1D806BD - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 24 V DC standard coil - Schneider Electric - LC1D806BD
Download
