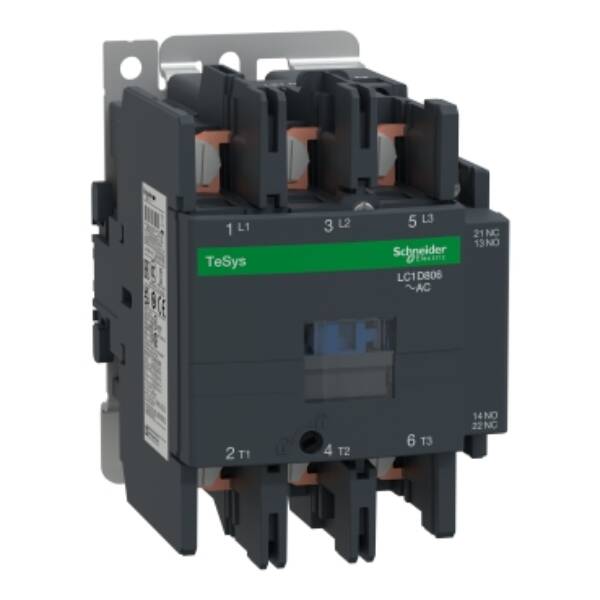

LC1D806B7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 24 V AC 50/60 Hz coil - Schneider Electric - LC1D806B7

Control

~~List Price £340.75 +VAT~~

Our Price £255.56 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

"TeSys Deca contactor, 3P(3NO) for category AC-3/AC-3e applications up to 80A @440V." It provides with 24V 50/60 Hz coil, power and control connections by bars/ lugs-ring. It procures high reliability and durability with 4 Mcycles mechanical durability and 1.5 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. "It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude." Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 85mm x 130mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,CSA,UL,GOST,BV,RINA,DNV,LROS,GL).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D806B7
Weight (kg): 1.60 kg
Type: TeSys Deca contactors
