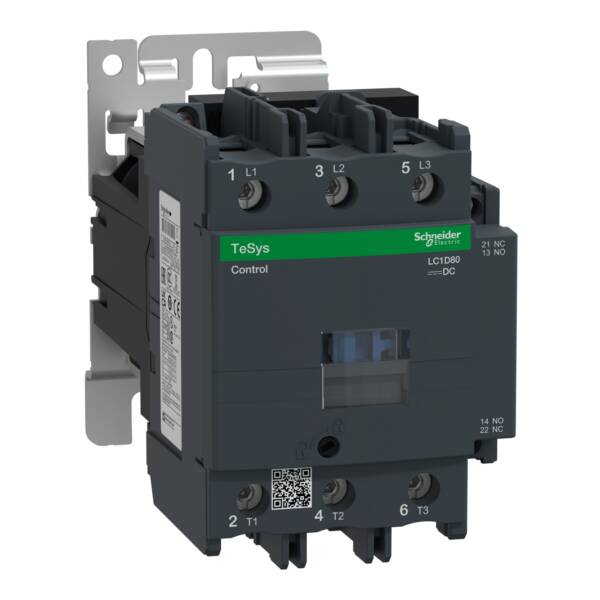

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 110 V DC standard coil - Schneider Electric - LC1D80FD

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 110 V DC standard coil - Schneider Electric - LC1D80FD

LC1D80FD

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 110 V DC standard coil - Schneider Electric - LC1D80FD

Control

~~List Price £455.51 +VAT~~

Our Price £341.63 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 110V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D80FD
Weight (kg): 2.51 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated operation power at AC-3, 400 V: 37
Number of main contacts as normally open contact: 3
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Rated operation current Ie at AC-1, 400 V: 125
Rated operation current Ie at AC-3, 400 V: 80
Voltage type for actuating: DC
Rated operation current Ie at AC-4, 400 V: 32
Rated control supply voltage Us at DC: 110 V
Rated operation power at AC-4, 400 V: 15
