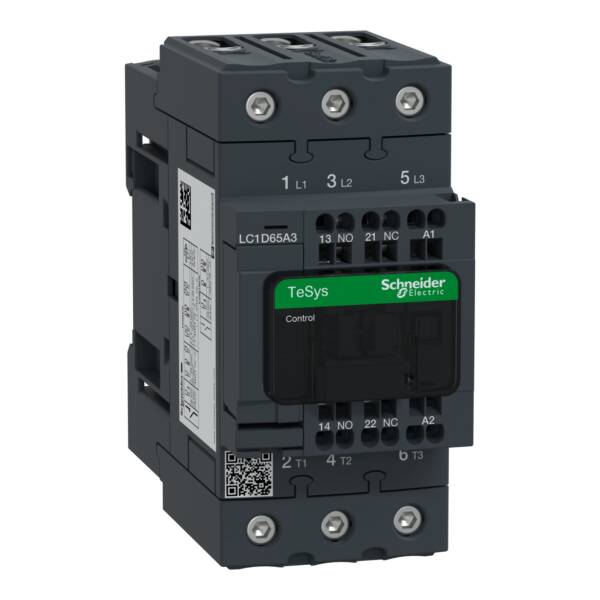

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 230 V AC 50/60 Hz coil - Schneider Electric - LC1D65A3P7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 230 V AC 50/60 Hz coil - Schneider Electric - LC1D65A3P7

LC1D65A3P7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 230 V AC 50/60 Hz coil - Schneider Electric - LC1D65A3P7

Control

List Price £254.38 +VAT

Our Price £190.79 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys D contactor, 3 poles (3NO), for motor control applications up to 65A/440V AC-3/3e (30kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D65A3P7
Weight (kg)
0.91 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Spring clamp connection
Rated control supply voltage Us at AC 50HZ
230 V
Rated control supply voltage Us at AC 60HZ
230 V
Rated operation power at AC-3, 400 V
30
Number of main contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
80
Rated operation current Ie at AC-3, 400 V
65
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
25
Rated operation power at AC-4, 400 V
11

Datasheet for LC1D65A3P7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 230 V AC 50/60 Hz coil - Schneider Electric - LC1D65A3P7
