LC1D32JL
LC1D32JL

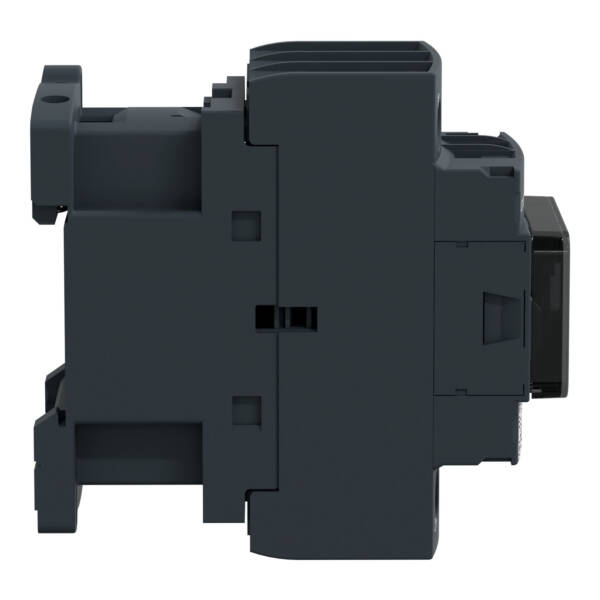

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 12 V DC coil - Schneider Electric - LC1D32JL
Control
List Price £173.93
+VAT
Our Price £130.45
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a 12V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 12 VDC coil with transient suppressor module.
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D32JL
Weight (kg)
0.42 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Width
45
Rated operation power at AC-3, 400 V
15
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Depth
101
Rated operation current Ie at AC-1, 400 V
50
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
32
Height
85
Rated control supply voltage DC
12 Volt
Datasheet for LC1D32JL - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 12 V DC coil - Schneider Electric - LC1D32JL
Download
