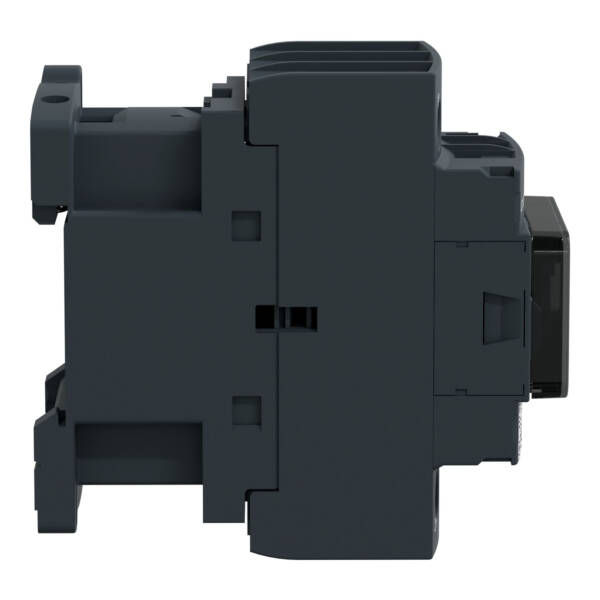

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). They can be used to create motor starters for almost any type of application. It provides a 12V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 12 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.18 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Brand

Schneider Electric

Range

TeSys Deca contactors

Part No

LC1D32JD

Weight (kg)

0.59 kg

Type

TeSys Deca contactors

Type of electrical connection of main circuit

Screw connection

Width

45

Rated operation power at AC-3, 400 V

15

Number of normally open contacts as main contact

3

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

1

Modular version

FALSE

Depth

101

Rated operation current Ie at AC-1, 400 V

50

Voltage type for actuating

DC

Height

85

Rated control supply voltage DC

12 Volt

Rated operation current Ie at AC-3, 400 V

32
