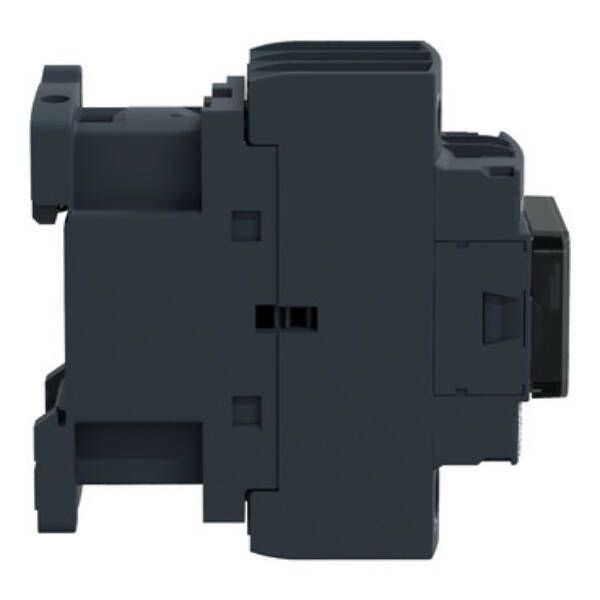

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 115 V AC coil - Schneider Electric - LC1D32FE7

LC1D32FE7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 115 V AC coil - Schneider Electric - LC1D32FE7

Control

~~List Price £125.42 +VAT~~

Our Price £94.07 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a 115V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D32FE7
Weight (kg): 0.42 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 115 V
craft\elements\db\ElementQuery: 115 V
Rated operation power at AC-3, 400 V: 15
Number of main contacts as normally open contact: 3
craft\elements\db\ElementQuery: 1
craft\elements\db\ElementQuery: 1
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: 50
craft\elements\db\ElementQuery: 18
craft\elements\db\ElementQuery: AC
Rated operation current Ie at AC-3, 400 V: 32
craft\elements\db\ElementQuery: 7.5

Datasheet for LC1D32FE7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 115 V AC coil - Schneider Electric - LC1D32FE7

Download
