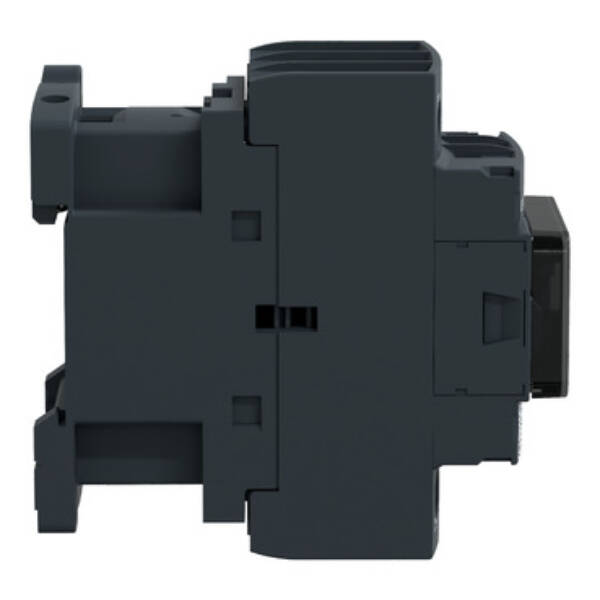

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 110 V DC coil - Schneider Electric - LC1D32FL

LC1D32FL

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 110 V DC coil - Schneider Electric - LC1D32FL

Control

~~List Price £184.57 +VAT~~

Our Price £138.43 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a 110V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D32FL
Weight (kg): 0.58 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 45
Rated operation power at AC-3, 400 V: 15
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Depth: 101
Rated operation current Ie at AC-1, 400 V: 50
Voltage type for actuating: DC
Rated operation current Ie at AC-3, 400 V: 32
Height: 85
Rated control supply voltage DC: 110 Volt

Datasheet for LC1D32FL - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 110 V DC coil - Schneider Electric - LC1D32FL

Download
