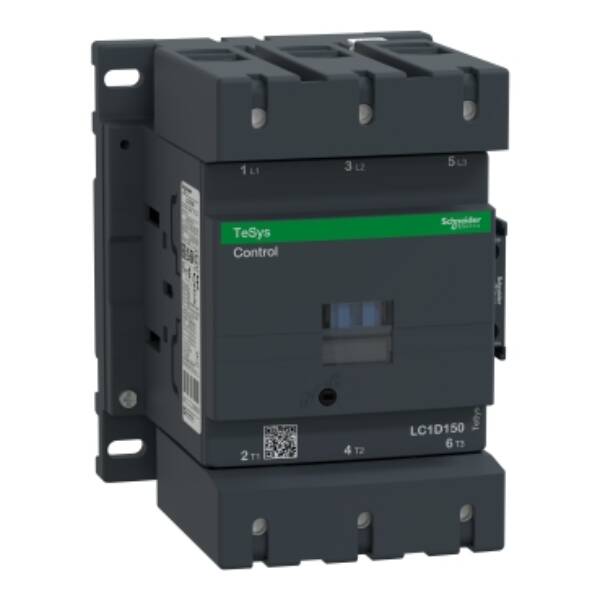

LC1D150T7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 480 V AC 50/60 Hz coil - Schneider Electric - LC1D150T7

Control

~~List Price £646.01 +VAT~~

Our Price £484.51 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"TeSys Deca contactor, 3P(3NO) for category AC-3 applications on motor control up to 150A @440V." It provides with 480V 50/60 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals. It procures high reliability and durability with 8 Mcycles mechanical durability and 0.85 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 1200 cycles per hour under maximum 60°C. The dimension is 158mm x 120mm x 136mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL,UKCA).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D150T7
Weight (kg): 2.44 kg
Type: TeSys Deca contactors
