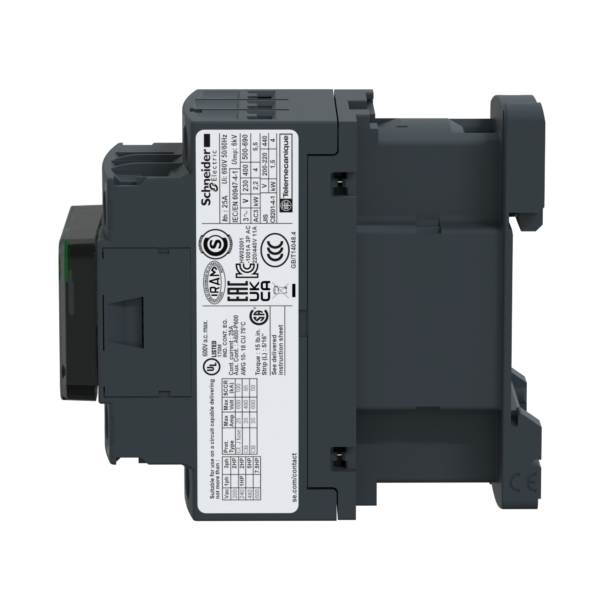

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil - Schneider Electric - LC1D12BD

LC1D12BD

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil - Schneider Electric - LC1D12BD

Control

~~List Price £85.19 +VAT~~

Our Price £63.89 +VAT

SAVE 26% OFF List Price

Fast Track Delivery Product

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D12BD
Weight (kg): 0.52 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 45
Rated operation power at AC-3, 400 V: 5.5
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Depth: 86
Rated operation current Ie at AC-1, 400 V: 25
Rated operation current Ie at AC-3, 400 V: 12
Rated control supply voltage DC: 24 Volt
Voltage type for actuating: DC
Height: 77

Datasheet for LC1D12BD - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil - Schneider Electric - LC1D12BD

Download
