TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 110 V DC coil - Schneider Electric - LC1D123FD

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 110 V DC coil - Schneider Electric - LC1D123FD

LC1D123FD

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 110 V DC coil - Schneider Electric - LC1D123FD

Automation

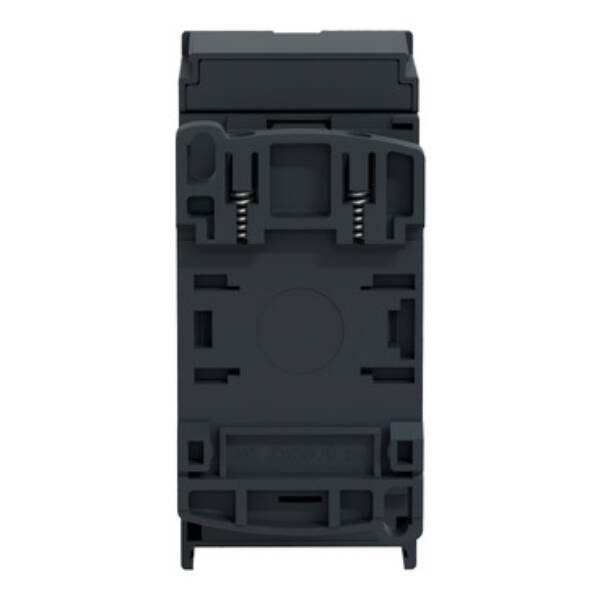

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 110V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £95.84 +VAT~~

Our Price £71.88 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Specifications

Brand: Schneider Electric
Type: TeSys Deca contactors
Range: TeSys Deca contactors
Part No: LC1D123FD
Weight (kg): 0.55 kg

Datasheet for LC1D123FD - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 110 V DC coil - Schneider Electric - LC1D123FD

Download
