LC1D115R7

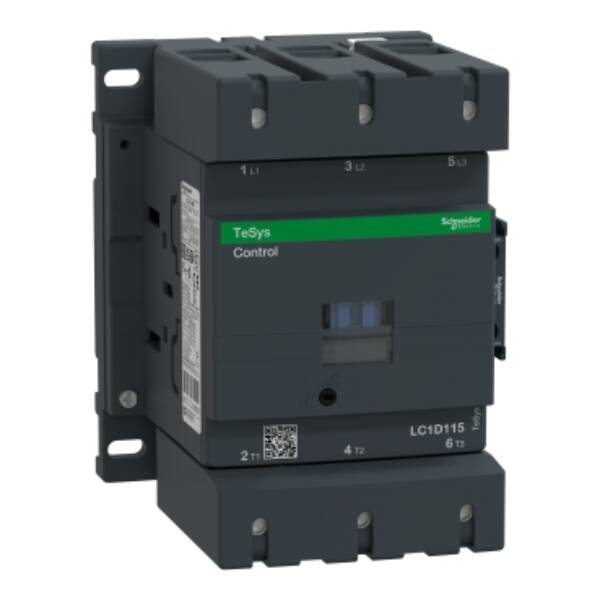

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 440 V AC 50/60 Hz coil - Schneider Electric - LC1D115R7

Industrial Automation and Control

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 440V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £501.66 +VAT~~

Our Price £376.25 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
