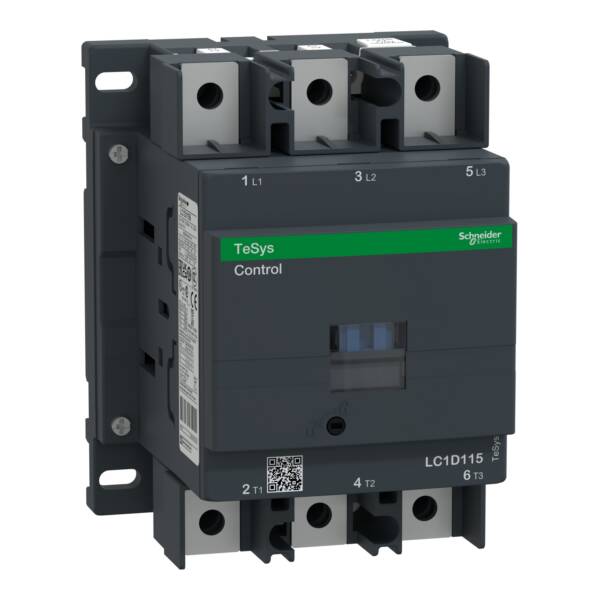

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 220 V AC 50 Hz coil - Schneider Electric - LC1D1156M5
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 220 V AC 50 Hz coil - Schneider Electric - LC1D1156M5

LC1D1156M5

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 220 V AC 50 Hz coil - Schneider Electric - LC1D1156M5

Control

List Price £493.38 +VAT

Our Price £370.04 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"TeSys Deca contactor, 3 poles(3NO) for category AC-3 applications up to 115A @440V." "It provides with 220V 50 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals." It procures high reliability and durability with 8 Mcycles mechanical durability and 0.95 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. "Designed for demanding applications with maximum operating rates up to 1200 cycles per hour under maximum 60°C." The dimension is 158mm x 120mm x 136mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,DNV,GL,CSA,GOST,BV,UL,LROS,RINA,UKCA).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D1156M5
Weight (kg)
2.13 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Other
Rated control supply voltage Us at AC 50HZ
220 V
Rated operation power at AC-3, 400 V
55
Number of main contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
200
Rated operation current Ie at AC-4, 400 V
38
Rated operation current Ie at AC-3, 400 V
115
Voltage type for actuating
AC
Rated operation power at AC-4, 400 V
18.5

Datasheet for LC1D1156M5 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 220 V AC 50 Hz coil - Schneider Electric - LC1D1156M5
