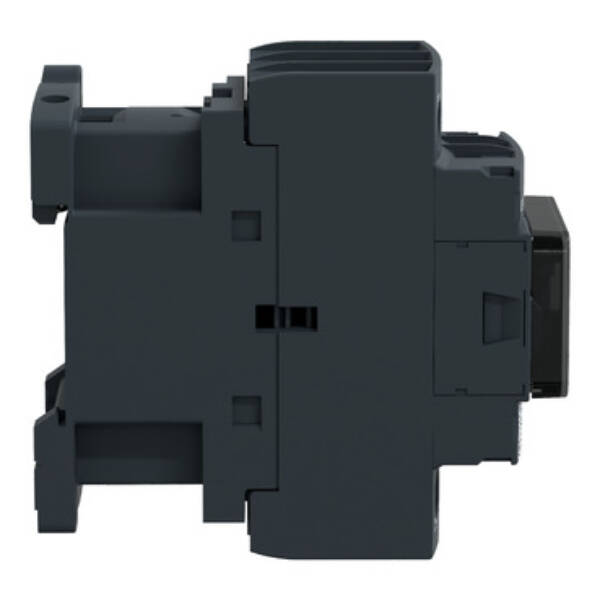

TeSys D contactor - 3P - <= 440 V - 32 A AC-3 - 100...250 V AC/DC coil - Schneider Electric - LC1D32KUE

TeSys D contactor - 3P - <= 440 V - 32 A AC-3 - 100...250 V AC/DC coil - Schneider Electric - LC1D32KUE

LC1D32KUE

TeSys D contactor - 3P - <= 440 V - 32 A AC-3 - 100...250 V AC/DC coil - Schneider Electric - LC1D32KUE

Control

~~List Price £166.83 +VAT~~

Our Price £125.12 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a low consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D32KUE
Weight (kg): 0.46 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 100…250 V
Rated control supply voltage Us at AC 60HZ: 100…250 V
Rated operation power at AC-3, 400 V: 15
Number of main contacts as normally open contact: 3
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Rated operation current Ie at AC-1, 400 V: 50
Rated operation current Ie at AC-4, 400 V: 18
Rated control supply voltage Us at DC: 100…250 V
Rated operation current Ie at AC-3, 400 V: 32
Voltage type for actuating: AC/DC
Rated operation power at AC-4, 400 V: 7.5
