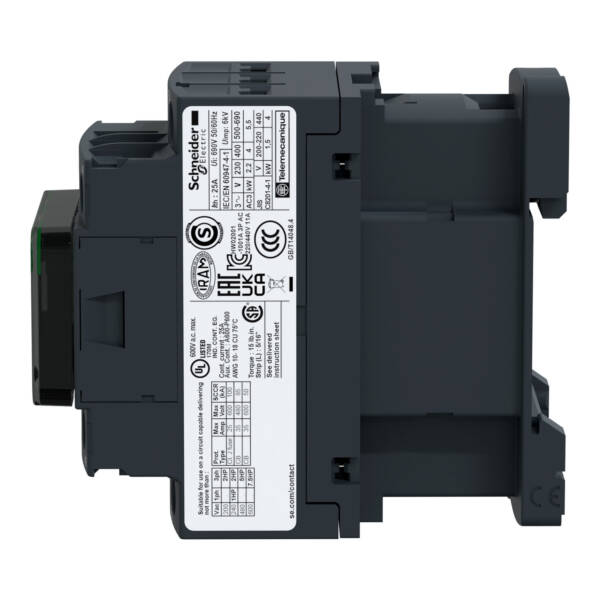

TeSys D contactor - 3P - <= 440 V - 12 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC1D12EHE
TeSys D contactor - 3P - <= 440 V - 12 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC1D12EHE

LC1D12EHE

TeSys D contactor - 3P - <= 440 V - 12 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC1D12EHE

Control

List Price £82.83 +VAT

Our Price £62.12 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a low consumption 48-130V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D12EHE
Weight (kg)
0.39 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
48…130 V
Rated control supply voltage Us at AC 60HZ
48…130 V
Rated operation power at AC-3, 400 V
5.5
Number of main contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
25
Rated control supply voltage Us at DC
48…130 V
Rated operation current Ie at AC-4, 400 V
7.5
Rated operation current Ie at AC-3, 400 V
12
Voltage type for actuating
AC/DC
Rated operation power at AC-4, 400 V
3

Datasheet for LC1D12EHE - TeSys D contactor - 3P - <= 440 V - 12 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC1D12EHE
