LC2DT40P7

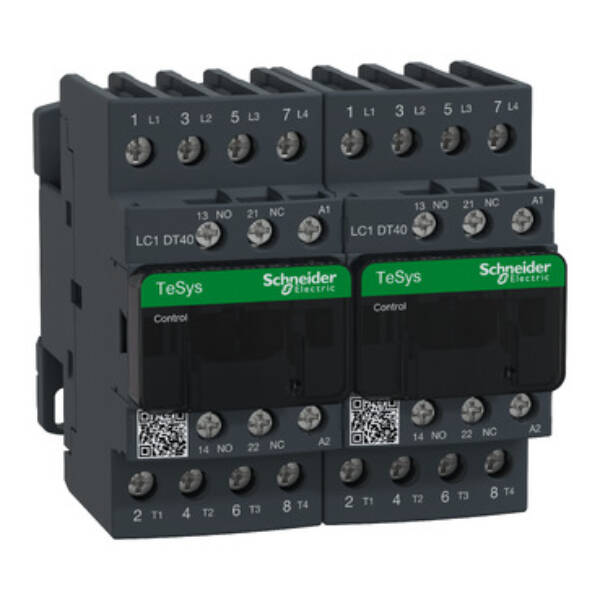

TeSys D changeover contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 230 V AC coil - Schneider Electric - LC2DT40P7

Automation

TeSys D changeover contactor, 4 poles (4NO), for non-inductive load applications up to 40A/690V AC-1. It provides 230V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired changeover power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £283.96 +VAT~~

Our Price £212.97 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
