LC3D32AP7

TeSys D - star delta starter - 3 x 3P (3 NO) - 32 A - 230 V AC coil - Schneider Electric - LC3D32AP7

Automation

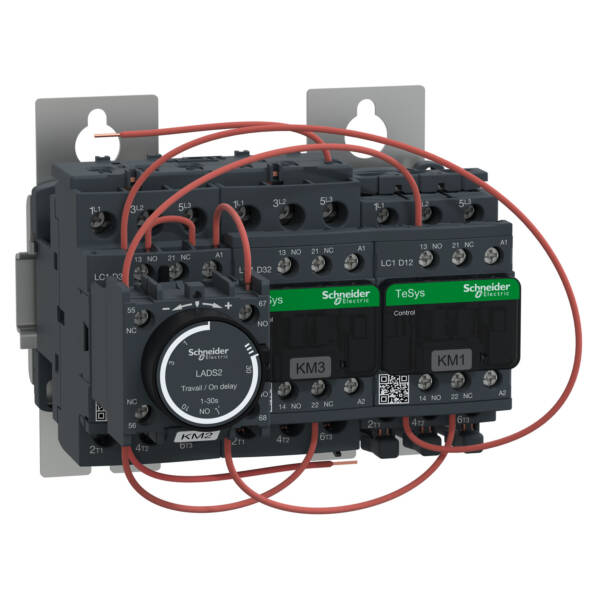

TeSys D pre-assembled star-delta starter, for motor control applications up to 25kW@400V in delta connection. Plate mounted starter, open version, composed of 3 contactors LC1D with 230V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (165mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).

~~List Price £805.73 +VAT~~

Our Price £604.30 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
