TeSys D - star delta starter - 3 x 3P (3 NO) - 32 A - 230 V AC coil - Schneider Electric - LC3D320AP7

LC3D320AP7

TeSys D - star delta starter - 3 x 3P (3 NO) - 32 A - 230 V AC coil - Schneider Electric - LC3D320AP7

Control

~~List Price £805.73 +VAT~~

Our Price £604.30 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

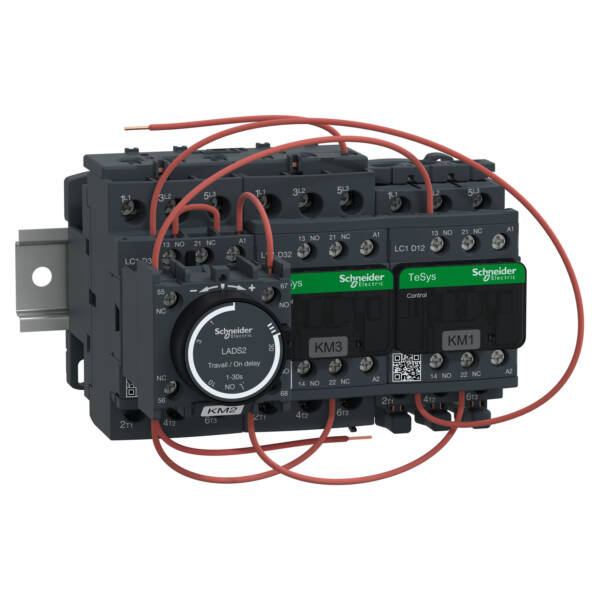

TeSys Deca pre-assembled star-delta starter, for motor control applications up to 25kW@400V in delta connection. Rail mounted starter, open version, composed of 3 contactors LC1D with 230V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (165mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC3D320AP7
Weight (kg): 1.59 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 230 V
Rated operation power NEMA: 14.9
Rated control supply voltage Us at AC 60HZ: 230 V
Rated operation current Ie at AC-3, 400 V: 32
Voltage type for actuating: AC
Degree of protection (IP): IP20
Function: Star-delta contactor
Rated operation power at AC-3, 400 V: 25
Degree of protection (NEMA): Other

Datasheet for LC3D320AP7 - TeSys D - star delta starter - 3 x 3P (3 NO) - 32 A - 230 V AC coil - Schneider Electric - LC3D320AP7

Download
