LC3D12AP7

TeSys D - star delta starter - 3 x 3P (3 NO) - 12 A - 230 V AC coil - Schneider Electric - LC3D12AP7

Control

~~List Price £429.48 +VAT~~

Our Price £322.11 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

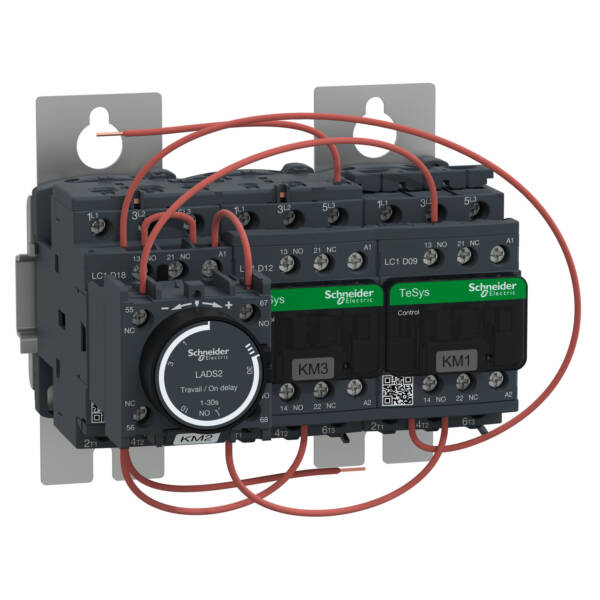

TeSys Deca pre-assembled star-delta starter, for motor control applications up to 11kW@400V in delta connection. Plate mounted starter, open version, composed of 3 contactors LC1D with 230V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (144mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC3D12AP7
Weight (kg): 1.62 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated operation power at AC-3, 400 V: 11
Type of electrical connection for auxiliary- and control current circuit: Screw connection
Voltage type (operating voltage): AC
Rated operation power NEMA: 5.59
Rated operation current Ie at AC-1, 400 V: 25
Voltage type for actuating: AC
Height: 124
Rated operation current Ie at AC-3, 400 V: 12
Degree of protection (IP): IP20
Width: 143
Rated control supply voltage AC 50 Hz: 230 Volt
Rated control supply voltage AC 60 Hz: 230 Volt
Rail mounting possible: TRUE
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 1
Operating voltage AC 50 Hz: 440 Volt
Depth: 143
Operating voltage AC 60 Hz: 440 Volt
Function: Star-delta contactor
Degree of protection (NEMA): Other
