TeSys D - auxiliary contact block - 4 NO - screw clamp terminals - Schneider Electric - LA1DZ40

TeSys D - auxiliary contact block - 4 NO - screw clamp terminals - Schneider Electric - LA1DZ40

LA1DZ40

TeSys D - auxiliary contact block - 4 NO - screw clamp terminals - Schneider Electric - LA1DZ40

Control

~~List Price £101.76 +VAT~~

Our Price £76.32 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

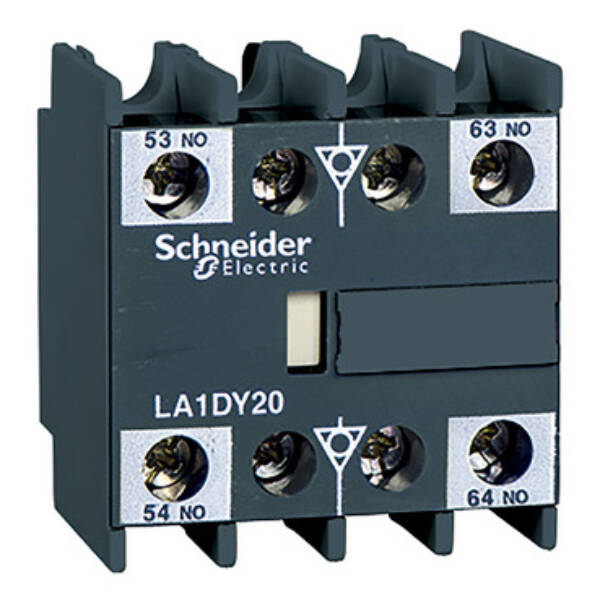

TeSys Deca instantaneous auxiliary contact block with dust and damp protected contacts, for LC1D contactors and CAD control relays in harsh industral environments. It provides 2NO protected contacts rated up to 0.1A 125V AC / 30V DC, 2NO not protected contacts rated up to 10A 690V AC, connection by screw clamp terminals. Protected contacts with very low minimum switching capacity (5V / 1mA) thanks to gold alloy contact material. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LA1DZ40
Weight (kg): 0.06 kg
Type: TeSys Deca contactors
Number of contacts as normally open contact: 4
Type of electric connection: Screw connection
Model: Top mounting
Rated operation current Ie at AC-15, 230 V: 10
Mounting method: Front fastening

Datasheet for LA1DZ40 - TeSys D - auxiliary contact block - 4 NO - screw clamp terminals - Schneider Electric - LA1DZ40

Download
