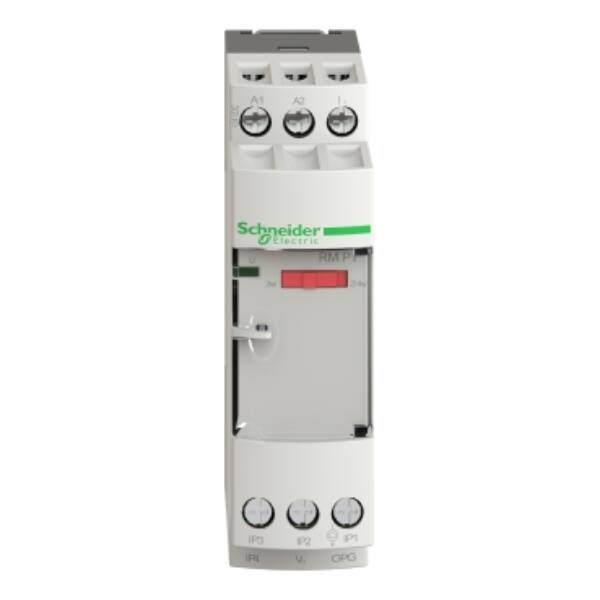

RMPT30BD

temperature transmitter - 0..100 °C/32..212 °F - for Universal Pt100 probes - Schneider Electric - RMPT30BD

Control

~~List Price £153.53 +VAT~~

Our Price £115.15 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This temperature transmitter is part of the range of Harmony Analog interfaces. It is designed to convert signal of Pt100 probe into standard electrical signal which is compatible with automation platforms, controllers. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. The cables used to connect the converters to process equipment (PLCs) are standard cables, which are more cost effective than extension cables or compensation cables suitable for low level signals for Pt100 probes or thermocouples. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Analog
Part No: RMPT30BD
Weight (kg): 0.11 kg
Type: Harmony Analog
Number of input ranges 0 mA ... 20 mA: 1
SIL according to IEC 61508: None
Inherently safe according to EN 60947-5-6 NAMUR: TRUE
Height: 78
Rated supply voltage at DC: 24 V
Depth: 80
Number of output ranges 4 mA ... 20 mA: 1
Type of power supply: Active
Number of channels: 1
Number of input ranges 4 mA ... 20 mA: 1
Galvanic separation between output to output: FALSE
Galvanic separation between input and output: FALSE
Galvanic separation between inputs: FALSE
Galvanic separation between supply voltage and all other current circuits: FALSE
Number of input ranges 0 V ... 10 V: 1
Switching voltage: 24
Construction type of device: Other
Width: 25
Mounting method: Snap mounting support rail
Operation temperature: 0…60 °C
Type of electric connection: Screw connection
Malfunction message output: FALSE
Degree of protection (IP): IP20
Load: 0.2 Ohm
Number of output ranges 0 mA ... 20 mA: 1
Switching current: 0.004
Switching power: 1.4
Power consumption: 1.44
Number of output ranges 0 V ... 10 V: 1
