STU Rear Module - dark grey - width 118 mm - depth 40.1 mm - Schneider Electric - HMIS5T

STU Rear Module - dark grey - width 118 mm - depth 40.1 mm - Schneider Electric - HMIS5T

HMIS5T

STU Rear Module - dark grey - width 118 mm - depth 40.1 mm - Schneider Electric - HMIS5T

Automation

~~List Price £346.49 +VAT~~

Our Price £294.52 +VAT

SAVE 15% OFF List Price

Estimated delivery between 7-10 working days

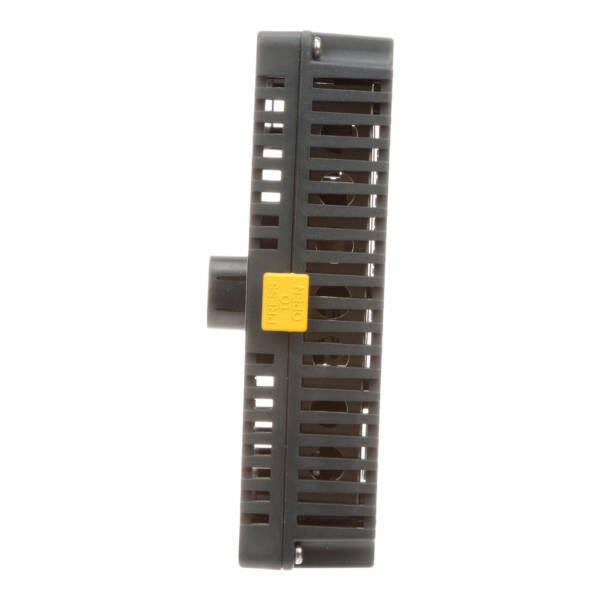

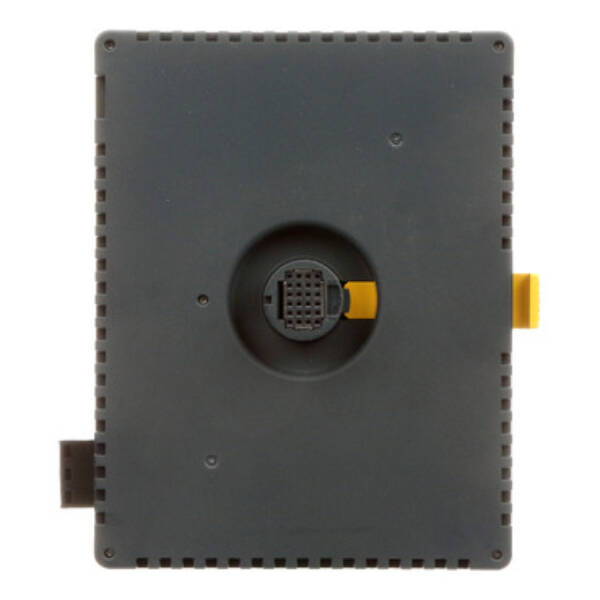

This rear panel is compatible with Harmony STU human machine interfaces (HMIs). It is made of PC/PBT and available in dark gray. Its dimensions are 118mm (width) x 40.1mm (depth). It is suitable for simple machines and infrastructure applications. This panel is compatible with HMISTU655, HMISTU655W, HMISTU855 and HMISTU855W. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.

Brand: Schneider Electric
Range: Harmony STO & STU
Part No: HMIS5T
Weight (kg): 0.36 kg
Type: Harmony STO & STU
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
Useful project memory/user memory: 128
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: 4X
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: FALSE
With recipes: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Degree of protection (IP), front side: IP65/IP67
Radio standard UMTS: FALSE
Additional software components, loadable: FALSE
Touch technology: Other
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: FALSE
Operation temperature: 0…50 °C
Screen diagonal: 3.4
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: AC/DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for PROFIBUS: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for TCP/IP: TRUE
Number of pixels, horizontal: 200
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
With colour display: TRUE
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Number of colours of the display: 3
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: FALSE
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: TRUE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of pixels, vertical: 80

Datasheet for HMIS5T - STU Rear Module - dark grey - width 118 mm - depth 40.1 mm - Schneider Electric - HMIS5T
