Starter TeSys H 0,75kW-400V control 24VDC Spring - Schneider Electric - LZ1H2X43BD
Starter TeSys H 0,75kW-400V control 24VDC Spring - Schneider Electric - LZ1H2X43BD

LZ1H2X43BD

Starter TeSys H 0,75kW-400V control 24VDC Spring - Schneider Electric - LZ1H2X43BD

Control

List Price £132.80 +VAT

Our Price £99.60 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

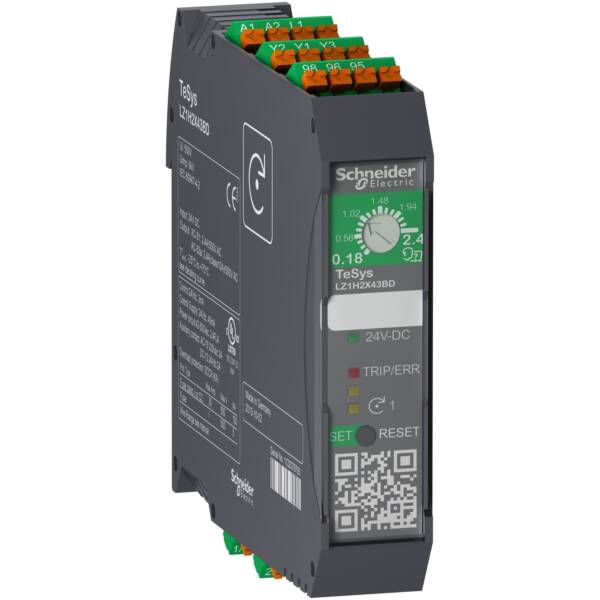

TeSys H ultra compact direct starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
Brand
Schneider Electric
Range
TeSys Hybrid
Part No
LZ1H2X43BD
Weight (kg)
0.24 kg
Type
TeSys Hybrid
Type of electrical connection of main circuit
Spring clamp connection
Number of indicator lights
3
Supporting protocol for SERCOS
FALSE
Rated operation power at AC-3, 400 V
0.75
Rated operation current Ie
2.4
Overload release current setting
0.18…2.4 A
External reset possible
TRUE
With transformer
FALSE
Ambient temperature, upper operating limit
70
Type of electrical connection for auxiliary- and control current circuit
Spring clamp connection
Rated operation current at AC-3, 400 V
2.4
Temperature compensated overload protection
TRUE
Height
107.5
Voltage type for actuating
DC
Supporting protocol for INTERBUS-Safety
FALSE
Width
22.6
Release class
CLASS 10
Supporting protocol for AS-Interface Safety at Work
FALSE
Depth
113.4
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Rated operation power at AC-3, 230 V, 3-phase
0.37
Kind of motor starter
Direct starter
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Degree of protection (IP)
IP20
Supporting protocol for CAN
FALSE
Supporting protocol for INTERBUS
FALSE
Rail mounting possible
TRUE
Supporting protocol for DeviceNet
FALSE
Supporting protocol for MODBUS
FALSE
Supporting protocol for Data-Highway
FALSE
Suitable for emergency stop
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
With fuse
FALSE
With short-circuit release
FALSE
Supporting protocol for SUCONET
FALSE
Rated power, 460 V, 60 Hz, 3-phase
0.75
Rated control supply voltage Us at DC
24 V
