LUCL38BL

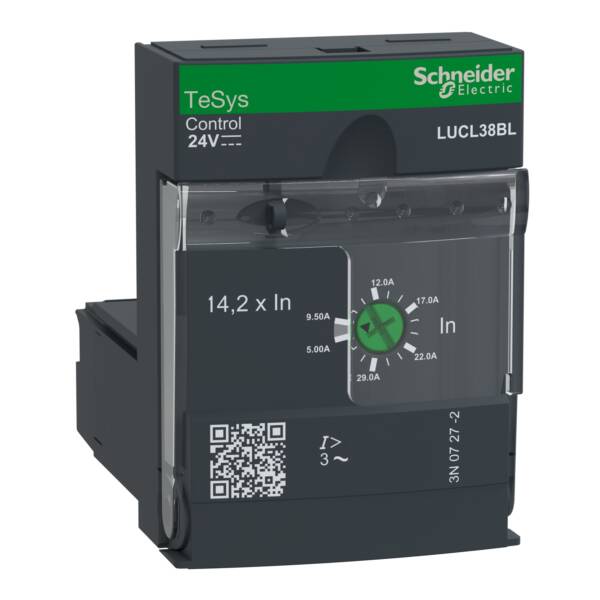

Standard control unit, TeSys U, 9.5-38A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL38BL
Automation
TeSys U magnetic control unit to be inserted in power bases LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 18.5kW@400V. It provides short circuit protection to motors with a rated current In 9.5-38A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Our Price £141.50 +VAT
SAVE 25% OFF List Price
Specifications
- Brand
- Schneider Electric
- Type
- TeSys U
- Range
- TeSys Ultra
- Part No
- LUCL38BL
- Weight (kg)
- 0.13 kg
Datasheet for LUCL38BL - Standard control unit, TeSys U, 9.5-38A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL38BL
