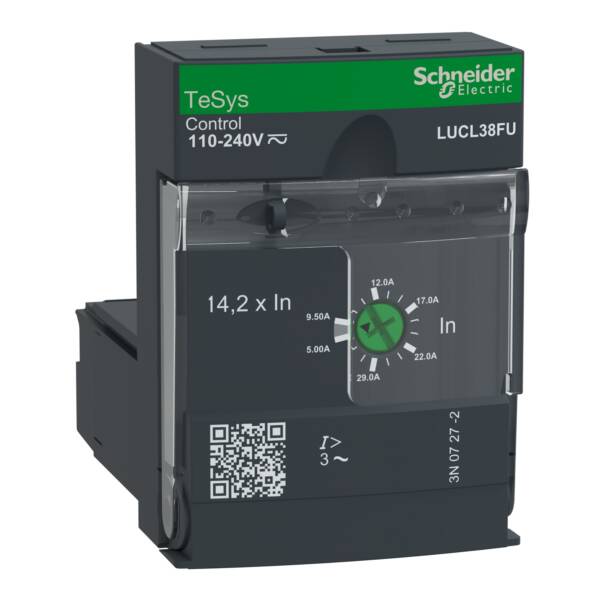

Standard control unit, TeSys U, 9.5-38A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL38FU

Standard control unit, TeSys U, 9.5-38A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL38FU

LUCL38FU

Standard control unit, TeSys U, 9.5-38A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL38FU

Control

~~List Price £182.44 +VAT~~

Our Price £136.83 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys U magnetic control unit to be inserted in power bases LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 18.5kW@400V. It provides short circuit protection to motors with a rated current In 9.5-38A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCL38FU
Weight (kg): 0.13 kg
Type: TeSys U
Type of motor protection: Other
Rated control supply voltage Us at AC 50HZ: 110…240 V
Number of poles: 3
Rated control supply voltage Us at AC 60HZ: 110…240 V
Rated control supply voltage Us at DC: 110…220 V
Initial value of the undelayed short-circuit release - setting range: 135
Voltage type for actuating: AC/DC
End value adjustment range undelayed short-circuit release: 540
With ground fault protection function: FALSE
Rated permanent current Iu: 38
Short-circuit release function: Undelayed

Datasheet for LUCL38FU - Standard control unit, TeSys U, 9.5-38A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL38FU

Download
