LUCA32FU

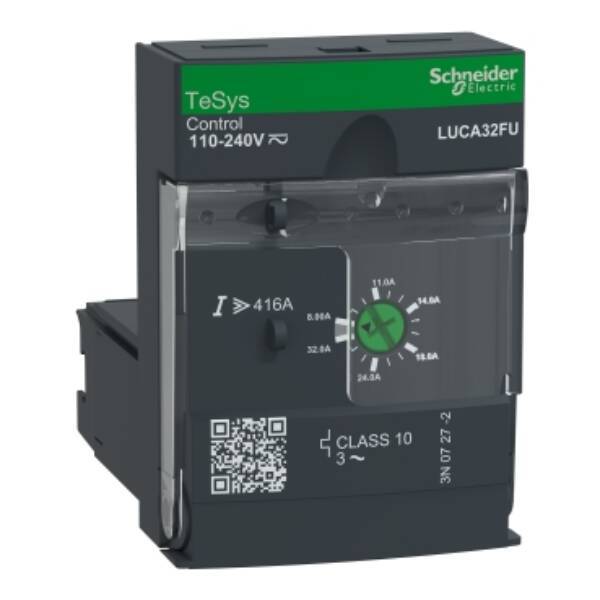

Standard control unit, TeSys U, 8-32A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA32FU

Automation

TeSys U standard control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £130.15 +VAT~~

Our Price £97.61 +VAT

SAVE 26% OFF List Price

Fast Track Delivery Product
