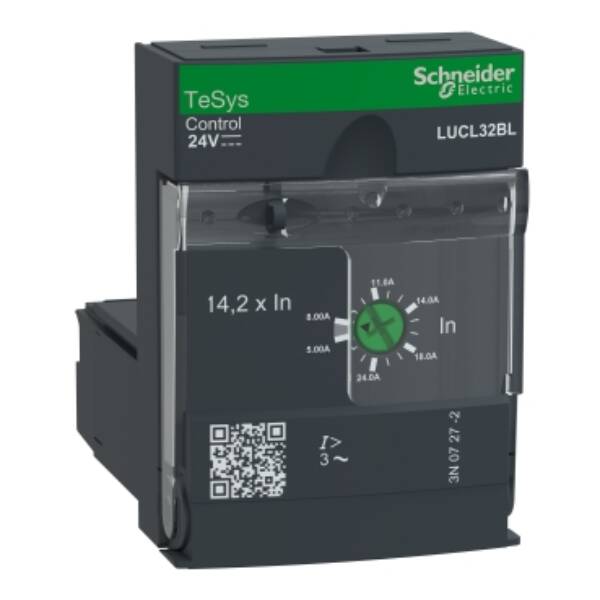

Standard control unit, TeSys U, 8-32A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL32BL
Standard control unit, TeSys U, 8-32A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL32BL

LUCL32BL

Standard control unit, TeSys U, 8-32A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL32BL

Control

List Price £181.02 +VAT

Our Price £135.77 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U magnetic control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides short circuit protection to motors with a rated current In 8-32A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCL32BL
Weight (kg)
0.13 kg
Type
TeSys U
Type of motor protection
Other
Number of poles
3
Initial value of the undelayed short-circuit release - setting range
114
Rated control supply voltage Us at DC
24 V
Voltage type for actuating
DC
End value adjustment range undelayed short-circuit release
454
With ground fault protection function
FALSE
Rated permanent current Iu
32
Short-circuit release function
Undelayed

Datasheet for LUCL32BL - Standard control unit, TeSys U, 8-32A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL32BL

Download
