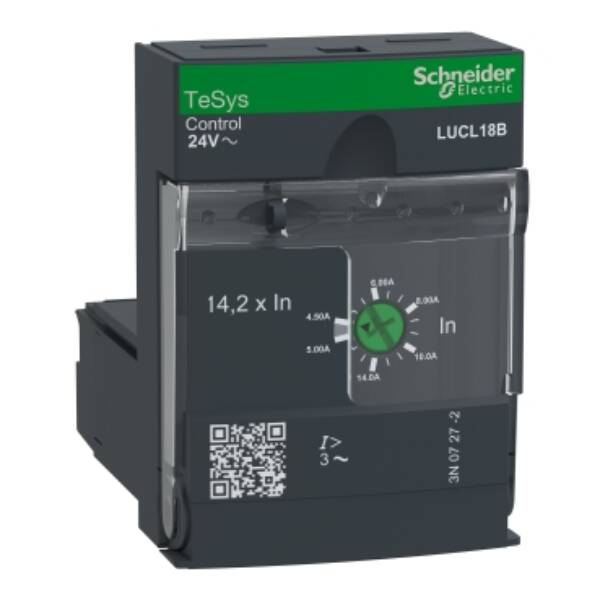

Standard control unit, TeSys U, 4.5-18A, 3P motors, magnetic protection, coil 24V AC - Schneider Electric - LUCL18B

Standard control unit, TeSys U, 4.5-18A, 3P motors, magnetic protection, coil 24V AC - Schneider Electric - LUCL18B

LUCL18B

Standard control unit, TeSys U, 4.5-18A, 3P motors, magnetic protection, coil 24V AC - Schneider Electric - LUCL18B

Control

~~List Price £141.01 +VAT~~

Our Price £105.76 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys U magnetic control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 7.5kW@400V. It provides short circuit protection to motors with a rated current In 4.5-18A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCL18B
Weight (kg): 0.13 kg
Type: TeSys U
Width: 45
With ground fault protection function: FALSE
Voltage type (supply voltage): AC
Operating voltage AC 50 Hz: 690 Volt
Rated permanent current Iu: 18
Depth: 60
Operating voltage AC 60 Hz: 690 Volt
Short-circuit release function: Undelayed
Type of motor protection: Other
Number of poles: 3
Voltage type (operating voltage): AC
External power supply required: TRUE
Height: 66

Datasheet for LUCL18B - Standard control unit, TeSys U, 4.5-18A, 3P motors, magnetic protection, coil 24V AC - Schneider Electric - LUCL18B

Download
