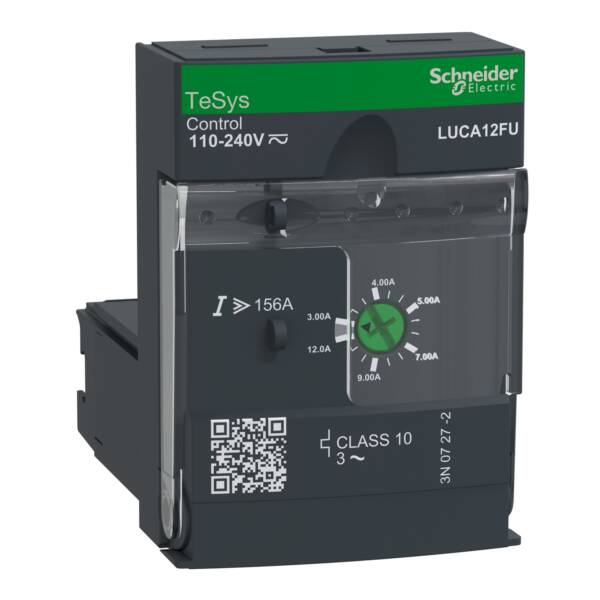

Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA12FU
Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA12FU

LUCA12FU

Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA12FU

Control

List Price £82.87 +VAT

Our Price £62.15 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCA12FU
Weight (kg)
0.13 kg
Type
TeSys U
Width
45
With ground fault protection function
TRUE
Voltage type (supply voltage)
AC/DC
Overload release current setting
3…12 Ampere
Operating voltage AC 50 Hz
690 Volt
Rated permanent current Iu
12
Depth
60
Operating voltage AC 60 Hz
690 Volt
Short-circuit release function
Undelayed
Type of motor protection
Thermal/magnetic release
Number of poles
3
Voltage type (operating voltage)
AC
External power supply required
TRUE
Height
66

Datasheet for LUCA12FU - Standard control unit, TeSys U, 3-12A, 3P motors, thermal magnetic protection, class 10, coil 110-240V AC/DC - Schneider Electric - LUCA12FU

Download
