LUCA05BL

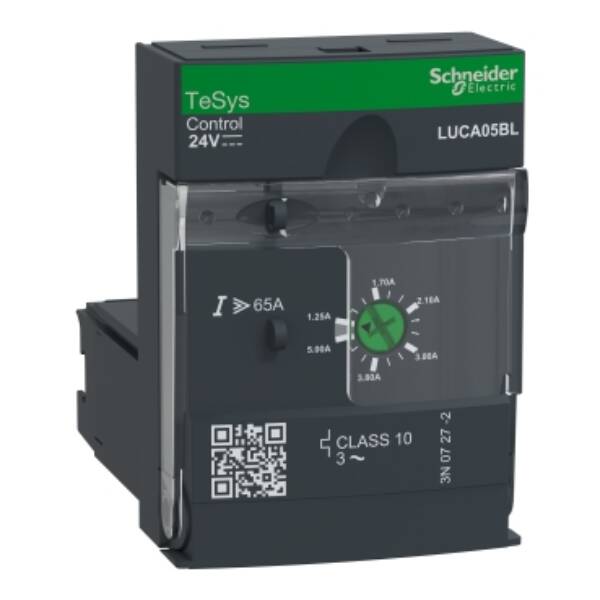

Standard control unit, TeSys U, 1.25-5A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA05BL
Control
List Price £79.28
+VAT
Our Price £59.46
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCA05BL
Weight (kg)
0.11 kg
Type
TeSys U
Type of motor protection
Thermal/magnetic release
Number of poles
3
Rated control supply voltage Us at DC
24 V
Initial value of the undelayed short-circuit release - setting range
65
Voltage type for actuating
DC
End value adjustment range undelayed short-circuit release
65
With ground fault protection function
TRUE
Overload release current setting
1.25…5 A
Rated permanent current Iu
5
Short-circuit release function
Undelayed
Datasheet for LUCA05BL - Standard control unit, TeSys U, 1.25-5A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA05BL
Download
